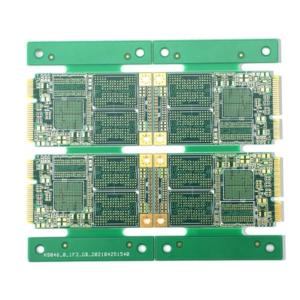

Gold Finger PCB Multilayer Rigid Printed Circuit Board For Portable Devices

Name: Gold Finger PCB Multilayer Rigid Printed Circuit Board For Portable Devices
Brand: TECircuit
Price: 1.99 USD

Brand Name : TECircuit

Model Number : TEC0212

Certification : UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Place of Origin : China

MOQ : 1pcs

Price : USD 1.99 ~ USD9.99/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 pcs/month

Delivery Time : 5-15 wotk days

Packaging Details : Vacuum package+Carton box

Brand : Shenzhen Tecircuit Electronics Co., Ltd

Product Type : PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core

Item No. : R0080

Service : PCBA service

Contact Now

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Smartphones:
- Used for connecting various internal components, such as display modules and cameras, ensuring reliable performance.
Tablets:
- Employed in tablet devices for efficient data transmission between components and peripherals.
Laptops:
- Integrated into laptops for connecting memory modules and other hardware components, facilitating smooth operations.
Gaming Consoles:
- Utilized in gaming devices for quick and reliable connections that enhance gaming performance.
Wearable Devices:
- Used in smartwatches and fitness trackers for robust connections in compact spaces.
Consumer Electronics:
- Found in various electronic gadgets, including cameras and portable media players, where reliable connectivity is essential.

Product Features

Gold Plating:
- The contact points, known as "gold fingers," are plated with gold to ensure excellent conductivity and resistance to corrosion, enhancing the reliability of connections.
High Durability:
- Gold fingers provide superior wear resistance, making them suitable for repeated insertions and removals in portable devices.
Excellent Signal Integrity:
- The use of gold plating minimizes signal loss, ensuring high-performance data transmission, which is critical in fast-paced electronic applications.
Compact Design:
- These PCBs allow for compact and efficient design layouts, optimizing space in portable devices without sacrificing functionality.
Compatibility:
- They are designed to be compatible with various connector types, making them versatile for different applications and devices.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
